Doctoring Rewinder Machines

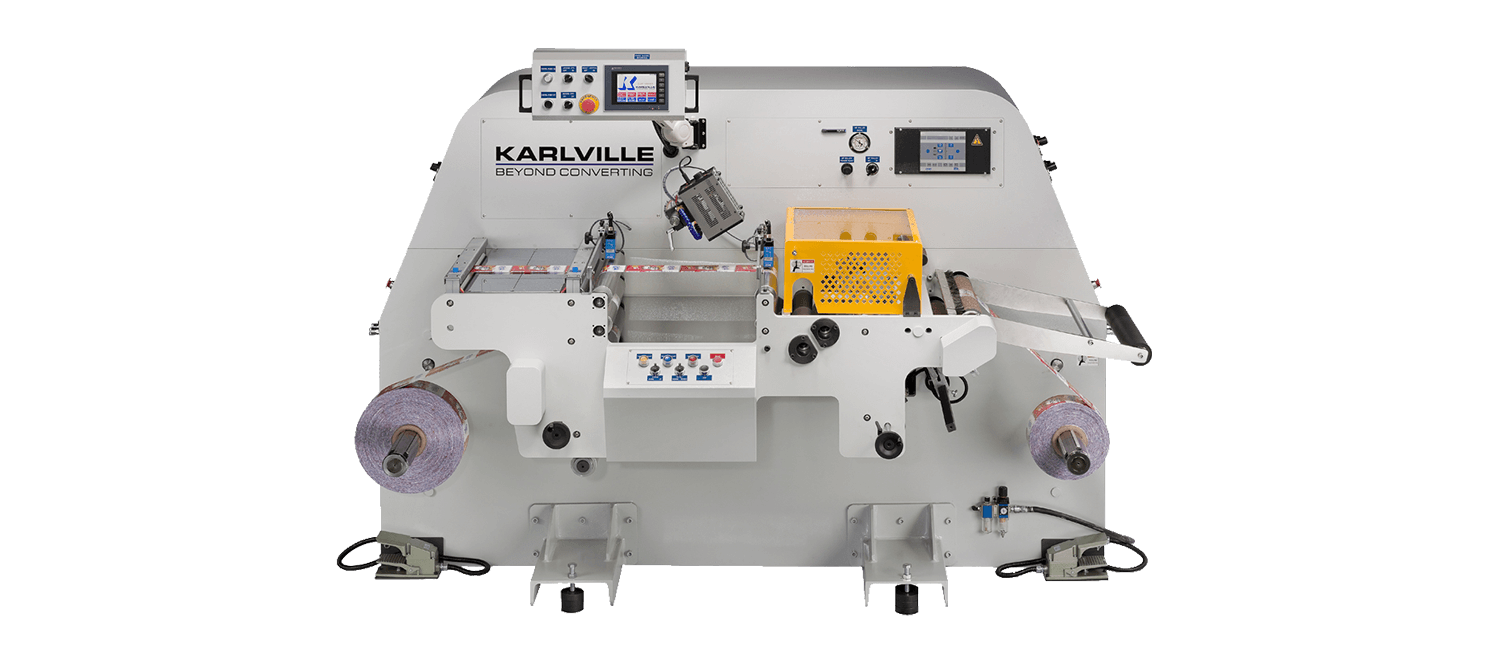

INSPECT-H300/H400/H500 (I2)
For Shrink Sleeve Inspection

Purpose of Machine

  • The I2 model operates in forward & backward directions with memory functions to return roll to defect position. The machine operates at 300 meters / min and is designed for shrink sleeve inspection process with in-line continuous perforations.

Features

  • PLC control system
  • Touch screen operator interface
  • AC vector driver
  • Automatic meter position memory
  • Rewind edge guide
  • Dancer tension control on unwind and rewind unit
  • Oscillation rewind
  • Stroboscope
  • Cantilevered rewind/unwind shaft for fast roller change-over.
  • Reverse function with memory function to automatically reverse to a defect area
  • Check any missing seams by inflating the shrink tube at the inspection area before rewind
If you need more information about this machine, please CONTACT US now.
